TENDA

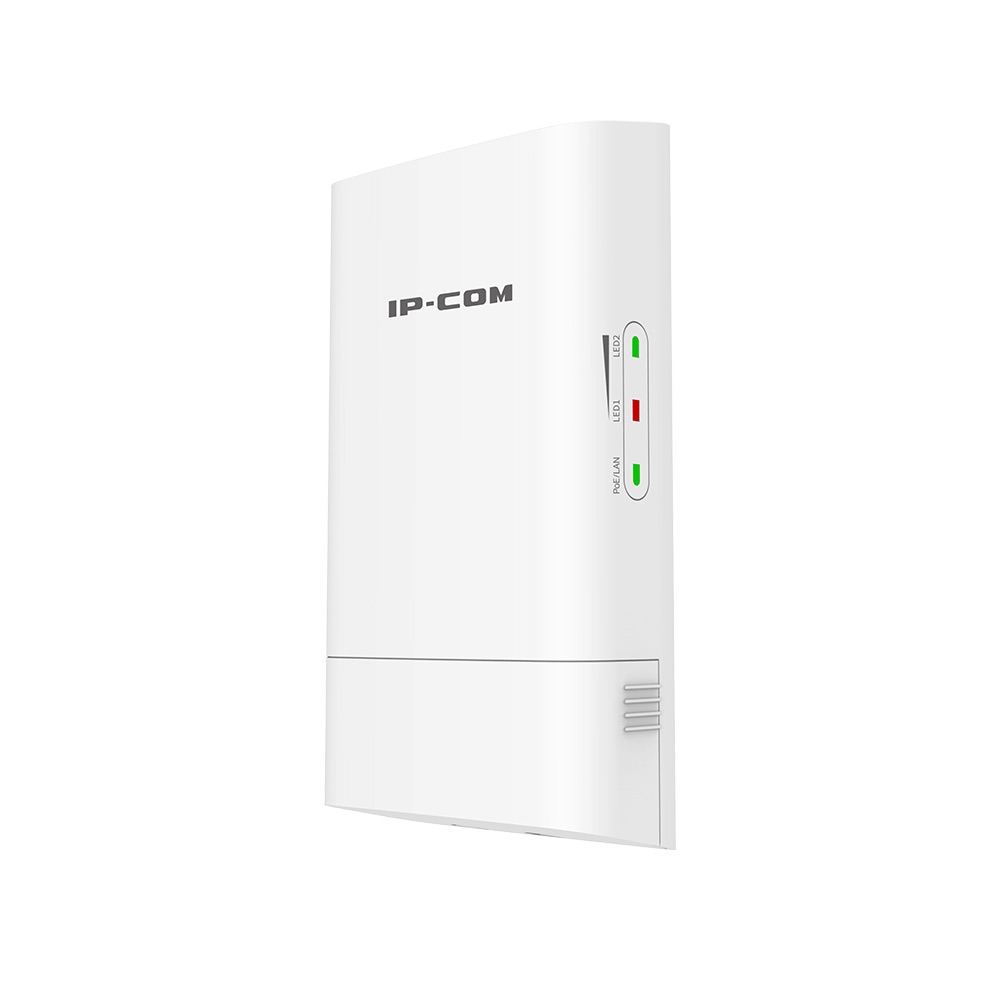

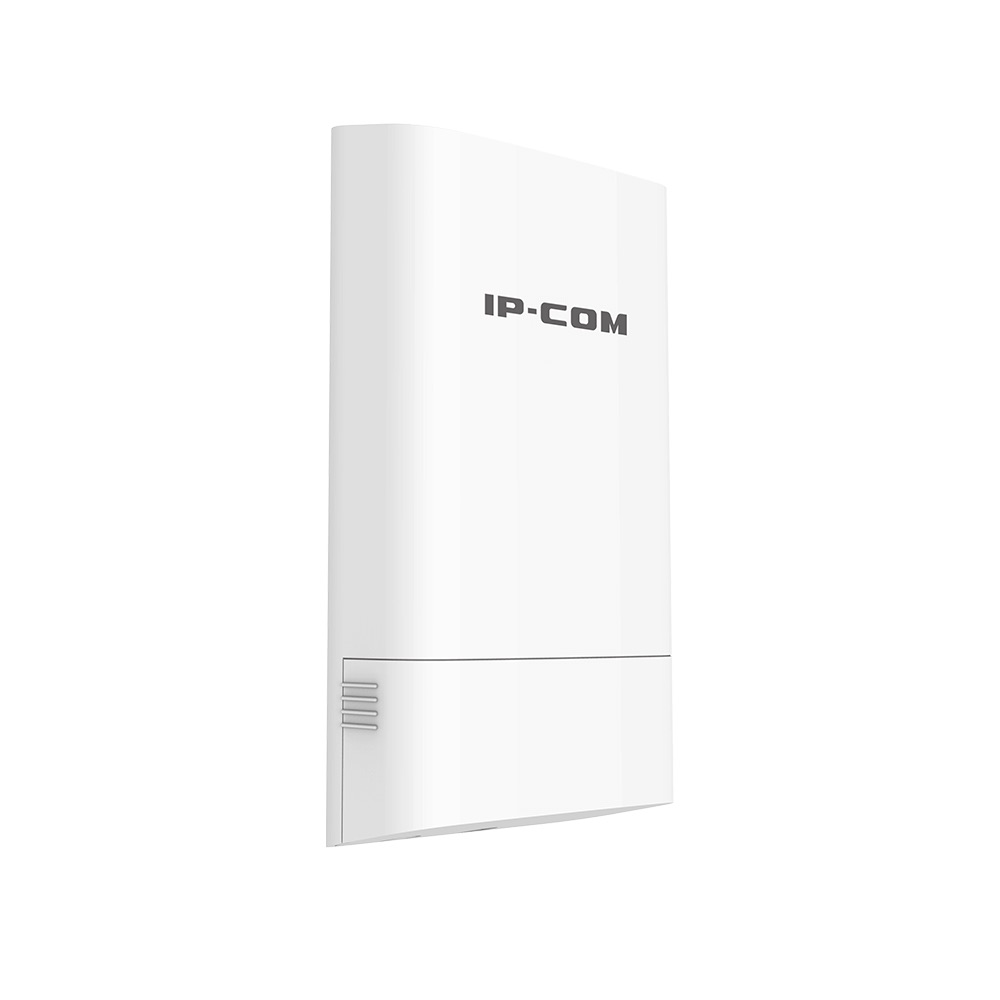

TENDA O1-5G 867MBPS 9DBI 5GHz OUTDOOR ACCESS POINTKod: 22279
Kategori: Access PointOrtam: Dış Ortam
Yetkili B2B Portalı•Toptan Bilişim & Donanım Dağıtımı
USD₺49,4463/EUR₺55,6180
Bayilik Başvurusu
Fiyat için bayi girişi yapın
Orijinal ürün, distribütör garantili.
| Model |
CPE5 |
|
Dimensions |
132*72*46.3mm |
|
Deployment |

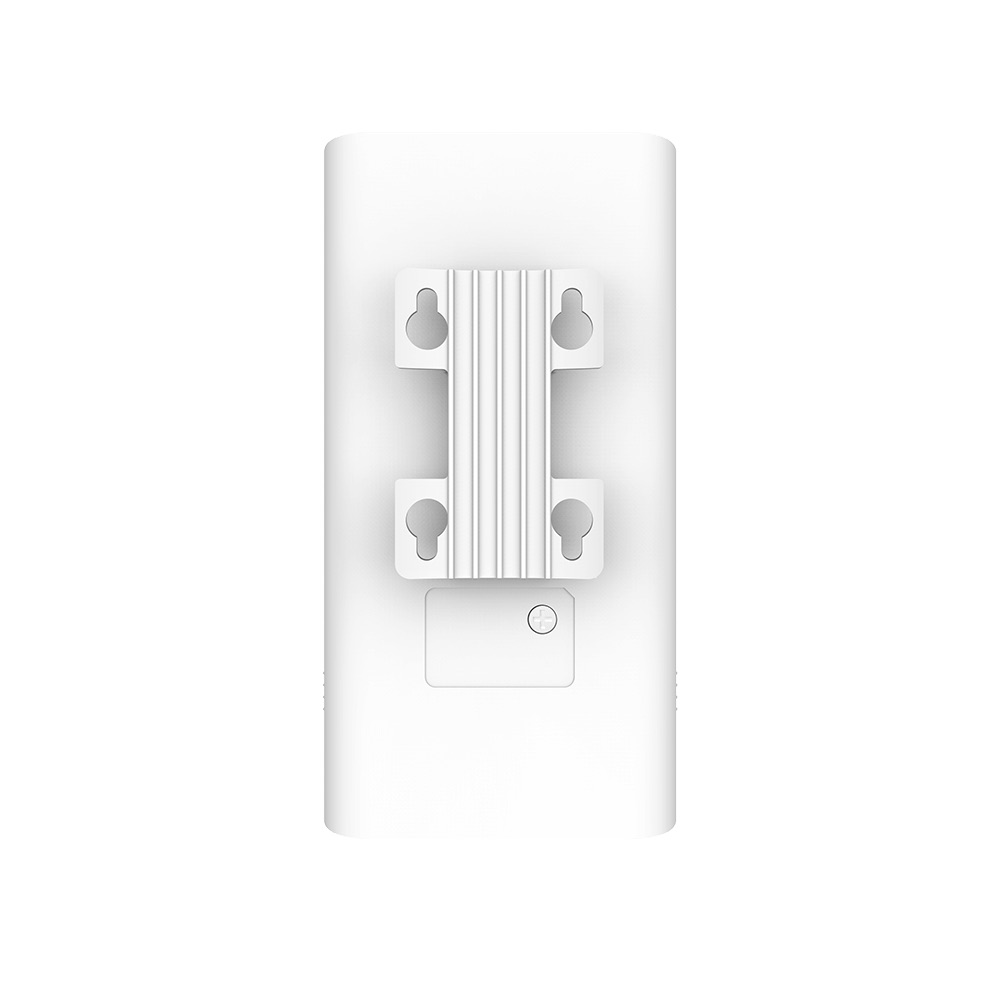

Pole/Wall Mount |
|
Application Scenarios |
PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
|
Frequency Range |
5GHz |
|
Compliant Standards |
IEEE 802.11a/n/ac |
|
Private TDMA Protocol |
/ |
|
Maximum Wireless Rate |
867Mbps |
|
Interfaces |
1*10/100Mbps LAN Port |
|
Antennas Gain |
9dBi |
|
Antenna Beamwidth |
Horizontal: 30° Vertical: 30° Elevation: 30° |
|
Reset Button |
1 |
|
Power Consumption |
4.7W |
|
Waterproof Level |
IP65 |
|
LED indicator |
PoE/LAN,LED1,LED2 |
|
Power Method |
12V 1A Passive PoE |
|
Lightning Protection |
/ |
|
PoE 802.3af/at |
/ |
|
Passive PoE |
Passive power over ethernet via PoE/LAN (+4,5pins; -7,8pins ) up to 60 meters |
|
Receive sensitivity |
11a 6Mbps -92dBm±1.5dBm |
|
Operating mode |
AP/Station |
|
Enable/Disable Wireless Radio |
Support |
|
SSID Hidden |
Support |
|
Wireless Client isolation |
Support |
|
SSID Isolation |
/ |
|
Channel Bandwidth |
20/40/80MHz |
|
Client Limitation For SSID |
Support |
|
Wireless Access Control |
Support |
|
Weak Signal Client Limitation |
/ |
|
Transmission Power |
Adjustable power by 1dBm |
|
WMM Capable |
Support |
|
APSD Capable |
Support |
|
Wireless Security |
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK |
|
Transparent Bridge |
Support |
|
VLAN Tagging for SSID |
/ |
|
DHCP Server |
/ |
|
VPN Pass-Through |
PPTP,L2TP |
|
Remote Web access |
/ |
|
Schedule Reboot |
Support |
|
Page Timeout |
Support |
|
Ping Watchdog |
Support |
|
Dyndns |
/ |
|
Network Diagnoses |
/ |
|
Time&Date Setting |
Support |
|
Firmware upgrade |
Support |
|
Backup/Restore Configuration |
Support |
|
Username Managerment |
Support |
|
System Log |
Support |
|
Managed By Controller |
PC Software -- CPE Controller |
|
Package Contents |
1*5GHz 9dBi ac 867Mbps Outdoor CPE |
|
Operating Temperature |
-30℃ ~ 60℃ |
|
Storage Temperature |
-40℃ ~ 70℃ |
|
Operating Humidity |
10%~90% non-condensing |
|
Storage Humidity |
10%~90% non-condensing |
|
Default login IP |
192.168.2.1 |
|
Default Login Username |
admin |
|
Default Login Password |
admin |
|
Certifications |
FCC/CE/RoHS |
| Kategori | Access Point |
|---|---|
| Ortam | Dış Ortam |
| Frekans | 5 GHz |
| POE Desteği | Var |
| Port Sayısı | 1 Port |
| 3G/4G Desteği | Yok |
| SFP Desteği | Yok |
| USB Desteği | Yok |
| Model | CPE5 |
|---|---|
| Dimensions | 132*72*46.3mm |
| Deployment | Pole/Wall Mount |
| Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n/ac |
| Private TDMA Protocol | / |
| Maximum Wireless Rate | 867Mbps |
| Interfaces | 1*10/100Mbps LAN Port |
| Antennas Gain | 9dBi |
| Antenna Beamwidth | Horizontal: 30° Vertical: 30° Elevation: 30° |
| Reset Button | 1 |
| Power Consumption | 4.7W |
| Waterproof Level | IP65 |
| LED indicator | PoE/LAN,LED1,LED2 |
| Power Method | 12V 1A Passive PoE 12V 1A DC |
| Lightning Protection | / |
| PoE 802.3af/at | / |
| Passive PoE | Passive power over ethernet via PoE/LAN (+4,5pins; -7,8pins ) up to 60 meters Voltage range: 9-13V DC |
| Receive sensitivity | 11a 6Mbps -92dBm±1.5dBm 11n MCS7 HT20 -72dBm±1.5dBm 11ac MCS9 HT80 -64dBm±1.5dBm |
| Operating mode | AP/Station |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | / |
| Channel Bandwidth | 20/40/80MHz |
| Client Limitation For SSID | Support |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | / |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | / |
| DHCP Server | / |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | / |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | / |
| Network Diagnoses | / |
| Time&Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Log | Support |
| Managed By Controller | PC Software -- CPE Controller |
| Package Contents | 1*5GHz 9dBi ac 867Mbps Outdoor CPE 1*Power adapter 1*PoE Injector 1*Quick Installation Guide |
| Operating Temperature | -30℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Default Login Username | admin |
| Default Login Password | admin |
| Certifications | FCC/CE/RoHS |
